API protocol overview

AxonX exposes Jobs through ordinary HTTP JSON, HTTP SSE, and MCP tools. All three share business Schemas and JobResponse; consult the capability pages for Task, Agent, and file-operation parameters. The service must be running; confirm its token and actual public catalog before calling it.

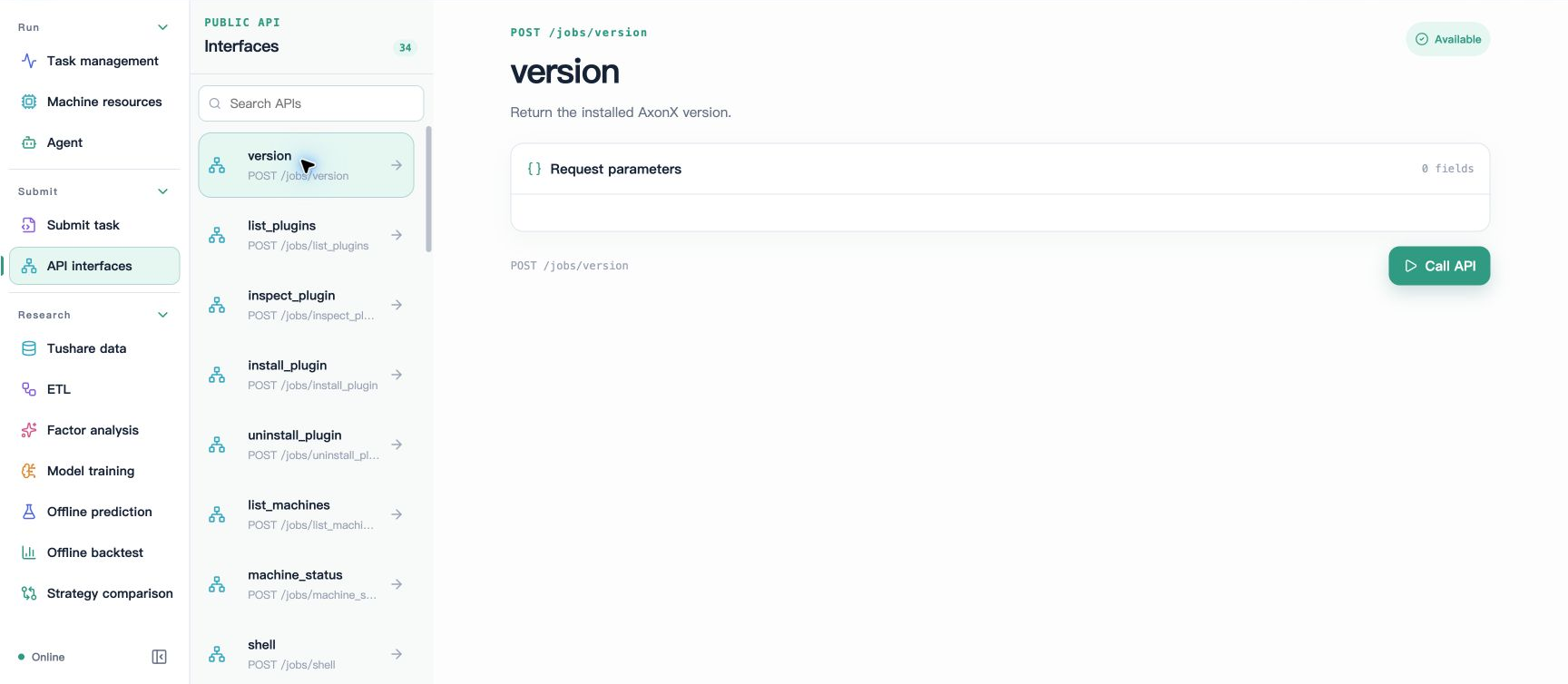

Studio's API interfaces displays Jobs exposed by the current machine and generates forms from their parameter Schemas. No call has been made in the illustration above; see Getting started with Studio for a complete call response.

Routes

Method	Path	Purpose	Successful response
GET	/health	Whether the current Application is running	JobResponse, answer.running
GET	/jobs	Actual public Job catalog	JobResponse, answer.items/total
POST	/jobs/{name}	Ordinary call	JobResponse
POST	/jobs/{name}/events	Live events	text/event-stream, ending with result
POST	/files	Upload raw bytes to staging	JobResponse, with FileCopy in answer
DELETE	/files?path=...	Clean up staged files	JobResponse, answer.path
MCP	/mcp	Streamable HTTP tool interface	MCP containing JobResponse
Multiple HTTP methods	/proxy/{name}/{path}	Configured upstream proxy	Upstream response

All business requests execute on the current service by default. GET /jobs?target=http%3A%2F%2Fnode-b%3A1024 queries a configured target's catalog; target in Job requests follows the same configuration-matching rules. proxy is a separate upstream-forwarding capability; see HTTP proxy.

Authentication and the public catalog

When service.token is configured, both the root paths and subpaths of /health, /jobs, /files, and /mcp require:

Authorization: Bearer your-service-token

OPTIONS requests skip this check. Studio's static pages and /proxy are outside these protocol-protected root paths; proxy uses the upstream request's credentials. requires_auth=false does not bypass a configured service token.

Two conditions determine which Jobs are public:

1. enable_serve=true.
2. The service has a token configured, or the Job has requires_auth=false.

Jobs default to requires_auth=true, so without a token in the default configuration, you cannot assume every default Job appears in the catalog. Jobs with enable_stream=false accept ordinary calls, but local /events returns 404. Restart the service after changing configuration; the catalog is determined when the HTTP application is built.

Request envelope

{
  "arguments": { "task": "demo", "x": 1, "y": 2 },
  "target": "http://node-b:1024"
}

arguments is the business-parameter dictionary, defaulting to {}; target is optional and defaults to local execution. The envelope rejects additional top-level fields. target must be listed in this service's targets. The service configuration stores the remote token; the browser submits only the address.

CLI --target instead connects directly to the address using the client's own token, without requiring this service's targets. MCP tools receive only Job business parameters, without the HTTP target envelope described above.

Minimal calls

Assume the service address is http://127.0.0.1:1024 and the token is stored in AXONX_SERVICE_TOKEN.

curl -s http://127.0.0.1:1024/health \
  -H "Authorization: Bearer $AXONX_SERVICE_TOKEN"

curl -s http://127.0.0.1:1024/jobs \
  -H "Authorization: Bearer $AXONX_SERVICE_TOKEN"

curl -s -X POST http://127.0.0.1:1024/jobs/version \
  -H "Authorization: Bearer $AXONX_SERVICE_TOKEN" \
  -H 'Content-Type: application/json' \
  -d '{"arguments":{}}'

Health response:

{ "answer": { "running": true }, "success": true, "metadata": {} }

The catalog returns JobCatalog. Only one item is shown below to illustrate the field structure; the actual Schema is more complete:

{
  "answer": {
    "items": [
      {
        "name": "version",
        "description": "Return the installed AxonX version.",
        "input_schema": { "type": "object", "properties": {} },
        "output_schema": { "type": "object" }
      }
    ],
    "total": 1
  },
  "success": true,
  "metadata": {}
}

output_schema describes the shared JobResponse and does not guarantee that every capability-specific answer type is modeled separately. Task definitions' output_schema is supplied separately by the task-catalog endpoints.

Responses and errors

Field	Type	Default	Explanation
answer	Any JSON-serializable value	""	Business answer or error text
success	boolean	true	Final business outcome of the Job
metadata	object	{}	Additional information; the Agent provides session_id and related values here

{ "answer": "KeyError: 'base#demo#missing'", "success": false, "metadata": {} }

This is an example of a business failure within HTTP 200. Clients must check both the HTTP status and success; a 200 alone is insufficient.

HTTP status	Common trigger	Response and handling
401	Missing or mismatched token	{"detail":"Invalid bearer token"}; check the connection target and token source
404	Job is not public, name is unknown, or streaming is disabled	{"detail":"Unknown job"}; query the catalog again
422	Invalid request envelope, parameter Schema, or target configuration	detail text or FastAPI validation details; revise the request
502	Connection or protocol failure in an ordinary remote call	detail text; check remote health and credentials
413	Upload exceeds the size limit	detail text; reduce the artifact size
409	Staging destination conflict	detail text; inspect staged content and symbolic links

Exceptions within executing Steps usually become success=false. After a streaming call starts, exceptions become failed result events and can no longer be represented by HTTP status. A stream that disconnects without a terminal result is not successful.

MCP and events

MCP automatically registers tool names, descriptions, and parameters for public Jobs; tools return ordinary JobResponse. MCP's Streamable HTTP is a transport mode and does not replace the AxonX SSE event protocol at /jobs/{name}/events. Live task logs, Agent thinking, and tool blocks use the Event protocol.

File uploads do not pass bytes directly through Job arguments or MCP tools; first use the file-transfer routes.

Related documentation

• Task API
• Workspace API
• Machine API
• Agent API
• Plugin and sync API
• Authentication rules
• Python usage

Implementation references: axonx/constants.py, components/service/http/app.py, jobs.py, files.py, components/job/contracts.py.
