DingTalk Notifications
send_dingtalk_task is an independent api Task that sends one message to all groups configured in the environment. It is not automatically bound to research task completion events; callers must explicitly submit it after research succeeds or fails.
Prerequisites
Prepare valid DingTalk application-robot credentials and recipient groups in the environment of the machine executing the task. Do not write credentials into Task parameters or research artifacts.
export DINGTALK_CLIENT_ID='<application client id>'
export DINGTALK_CLIENT_SECRET='<application client secret>'
export DINGTALK_CONVERSATIONS='{"research":"<open conversation id>"}'DINGTALK_CONVERSATIONS must be a nonempty JSON object. Keys are nonempty string labels; values are nonempty string group identifiers. Duplicate values are deduplicated. The current Task has no group-selection parameter and sends to every configured unique group when executed.
Sending Markdown

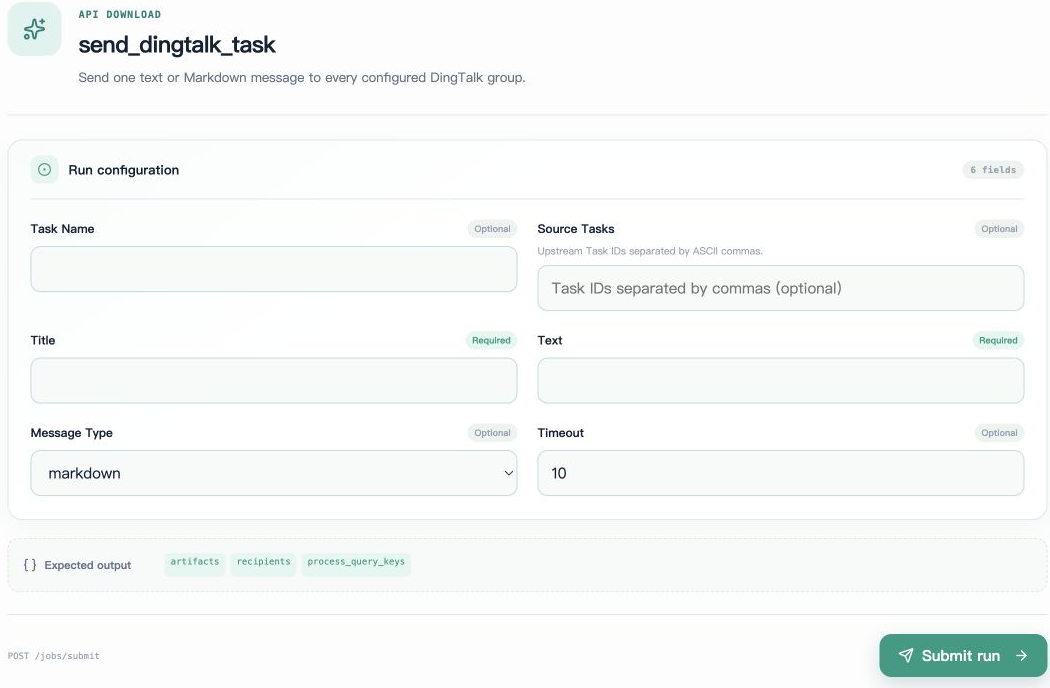

Open Development tools → Task definitions in Studio, select send_dingtalk_task, fill in Title, Text, and Message Type, then execute. See Using Studio for the complete task-definition interface. Executing the Task sends actual messages to groups configured on the execution machine.
The following usage example sends an actual external message; run it according to your recipient configuration:
axonx exec --task send_dingtalk_task \
--title 'AxonX research completed' \
--text '### Backtest completed\nView net returns, costs, and execution protocol for the corresponding Task in Studio.' \
--message-type markdownFor actual line breaks, construct a string containing newlines correctly in the shell, or pass arguments through JSON/calling code. \n inside ordinary single quotes consists of two characters and does not automatically become a newline:
message=$(cat <<'MESSAGE'
### AxonX research completed
Check metadata and standard artifacts for the corresponding Task.
MESSAGE
)
axonx exec --task send_dingtalk_task \
--title 'AxonX research completed' --text "$message" --message-type markdownFor text mode, set --message-type text. title and text must each contain at least one character. timeout defaults to 10 seconds and must be greater than zero.
Waiting and checking the response
Exec waits for the notification Task. Check its exit code and business delivery result before retrying; a timeout may leave delivery uncertain. Successful output includes:
| Field | Meaning |
|---|---|
recipients | Number of recipient groups after deduplication, at least 1 |
process_query_keys | Message processing query identifiers returned by DingTalk |
These identifiers mean the API accepted the request and returned references; they do not mean every group member read the message. Ordinary AxonX submission success also does not mean message delivery succeeded. Check the Task's final status.
Connecting notifications to research
Callers should first wait for the research Task's terminal state, then construct a message with Task ID, date range, and result location. Failure notifications should use actual errors and logs. Do not describe “submission accepted” as “backtest succeeded.”
A notification is another independent Task. To record relationships, pass the research task in upstream_task_ids as lineage information. However, the notification implementation does not proactively read upstream results or automatically generate research summaries.
There is currently no unified built-in switch to notify on all task completions. Cron can launch a local notification exec command. To wait for research completion and construct a message, implement a parent Task or a host workflow explicitly.
Failures and duplicate sends
Missing environment variables, a non-object group configuration, empty group identifiers, or failed DingTalk requests cause the notification task to fail. Check Task logs to identify the exact stage.
The client attempts each group and aggregates failures. If some groups fail, others may already have received the message. Rerunning can send again to groups that succeeded previously. There is currently no notification idempotency protocol keyed by research Task ID. Notification task success and research task success are two independent facts.
