Alpha158 plugin

English · 简体中文 · Plugin management

An independent AxonX research plugin for data processing, factor analysis, LightGBM training, out-of-sample prediction, and TopN backtesting.

Uses 158 price and volume features as a research baseline. For context features and ablation experiments, see Alpha158 Enhanced.

Install and inspect

Requires Python 3.12+; local Task execution supports macOS and Linux. Install into the execution service’s Python environment, then restart the service to reload contributions. LightGBM, NumPy, and Polars are installed as dependencies.

pip install axonx-alpha158
axonx plugin list
axonx plugin show axonx-alpha158

For source development, run from the repository root:

pip install -e ./plugins/a158
axonx plugin inspect ./plugins/a158

The local CLI environment may differ from the remote service environment. For remote deployment, configure the target service token and specify the target explicitly:

export AXONX_TARGET_TOKEN='<service token>'
axonx plugin install ./plugins/a158 --target 'http://<host>:1024'
axonx plugin list --target 'http://<host>:1024'

Restart the target service as indicated by restart_required, then query Task definitions. See plugin management.

Prepare data

Configure AXONX_TUSHARE_TOKEN in the execution service environment and use the built-in download_tushare_task to prepare Tushare Parquet data. The default ETL input is tushare/ inside the workspace, rather than the current shell directory.

axonx submit --task download_tushare_task \
  --start-date 20140101 --end-date 20260930 \
  --datasets 'static,stk_limit,daily,adj_factor,index_weight'

Save the returned task_id and run_id, and wait for the download to succeed before submitting ETL:

axonx --client-timeout 86400 wait_task \
  --task-id '<download_task_id>' --run-id '<download_run_id>'

Files	Purpose
*/*/daily.parquet, */*/adj_factor.parquet	Required market data and adjustment factors
trade_cal.parquet, stock_basic.parquet, namechange.parquet	Required trading calendar, stock master data, and historical names
*/*/stk_limit.parquet	Official price limits used for tradability
*/*/index_weight.parquet	CSI 300 weights used for index pools and benchmarks

Prepare sufficient preceding history for rolling windows. The example trains from 2015, so downloads start in 2014. The default download only looks back seven calendar days and does not provide a full history. For credentials, partition layout, and updates, see Tushare downloads.

Tasks and execution

Task	Upstream	Outputs
a158_etl	Workspace market data	Features, labels, trading status, and statistics
a158_factor	ETL Task ID	Factor diagnostics and analysis
a158_train	ETL Task ID	Model, training protocol, validation curves, and feature importance
a158_predict	Train Task ID	Full-cross-section predictions and statistics
a158_backtest	Predict Task ID	Daily backtests, period summaries, and holding-related artifacts

Factor analysis branches from ETL and is not a prerequisite for training. Submit in the following order, use the actual returned Task IDs, and wait for each stage to succeed before submitting its downstream stage.

axonx submit --task a158_etl --start-date 20150101 --end-date 20260930

# After ETL succeeds
axonx submit --task a158_factor --source-tasks '<etl_task_id>'
axonx submit --task a158_train --source-tasks '<etl_task_id>' \
  --train-start 20150101 --train-end 20230101

# After training succeeds
axonx submit --task a158_predict --source-tasks '<train_task_id>' \
  --pred-start 20230101 --pred-end 20260930

# After prediction succeeds
axonx submit --task a158_backtest --source-tasks '<predict_task_id>'

For every wait, provide both identifiers from that submission:

axonx --client-timeout 86400 wait_task \
  --task-id '<task_id>' --run-id '<run_id>'
axonx get_task_definition --task a158_train

For remote execution, add the same --target to all submission, wait, and definition queries. Install and execute against the same service environment.

Key parameters

Stage / parameter	Default	Meaning
ETL start_date / end_date	20140101 / null	First / last output dates, inclusive
ETL min_history_coverage	0.8	Minimum history coverage for rolling features
Train train_start / train_end	20150101 / 20230101	Inclusive start, exclusive cutoff
Train label_column	label_1d_rank	Daily cross-sectional return rank target
Train trim_tail	0.025	Remove 2.5% of raw returns from each daily tail
Train validation_ratio	0.10	Last training dates reserved for internal validation
Train num_boost_round / early_stopping_rounds	1000 / 50	Maximum rounds / early stopping patience
Train random_seed	42	Model sampling seed
Predict pred_start / pred_end	20230101 / null	Prediction interval; start must not precede the training cutoff
Backtest transaction_cost_rate	0.002	Transaction cost multiplied by actual daily turnover
Backtest annualization_days	252	Trading days used for annualization

Consult get_task_definition in the execution environment for the complete parameter Schema.

Features, labels, and backtest protocol

Original features use the f_alpha158_* namespace: 13 current-day price features and 29 rolling feature families over 5, 10, 20, 30, and 60 trading-day windows. Prices are adjusted, and trading-calendar and listing-status information are preserved.

The normal label is adjusted close-to-close return from signal day T to T+1. If the planned exit is unavailable, exit is delayed until the first sellable date. Training, factor evaluation, and signal ranking metrics use valid, undelayed one-day samples. Prediction retains the full cross section without filtering stocks by future labels.

Backtesting ranks same-day signals and simulates buying at the same-day close using daily tradability proxies. It does not model after-close queuing or partial fills. Positions retain capital until actual exit; open positions remain at cost, and net returns are booked on realized exits. Top30 holding details describe signal targets, rather than the live position book.

For return, cost, IC, and holding definitions, see Interpreting backtests.

Inspect results in Studio

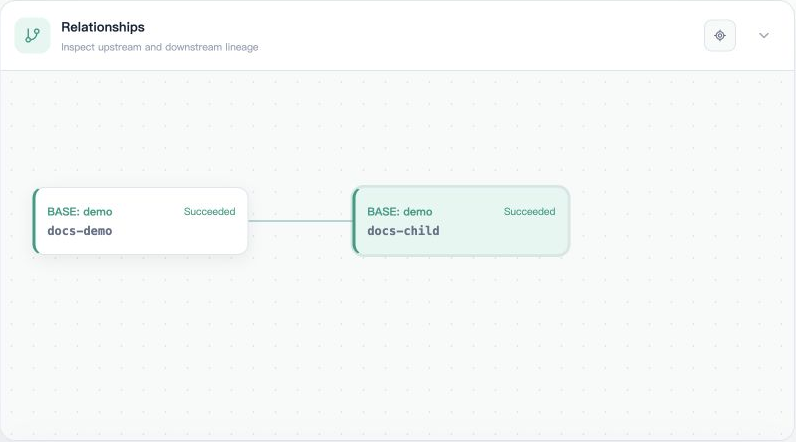

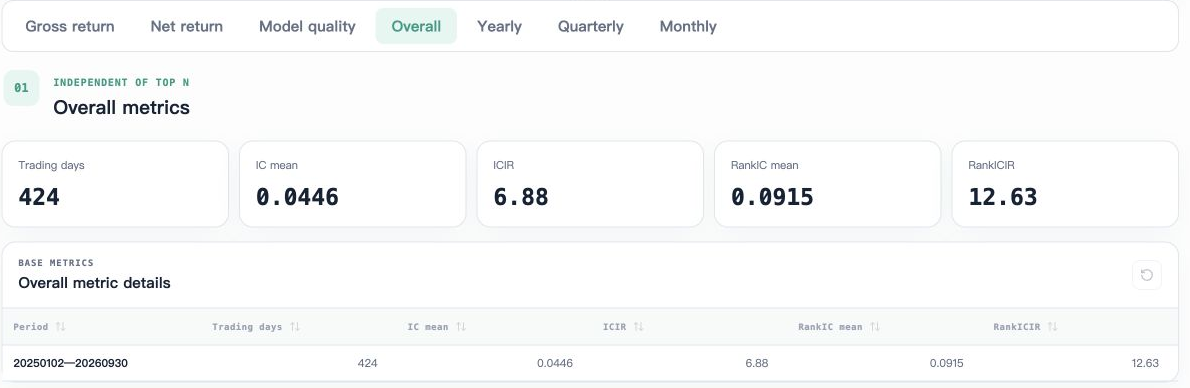

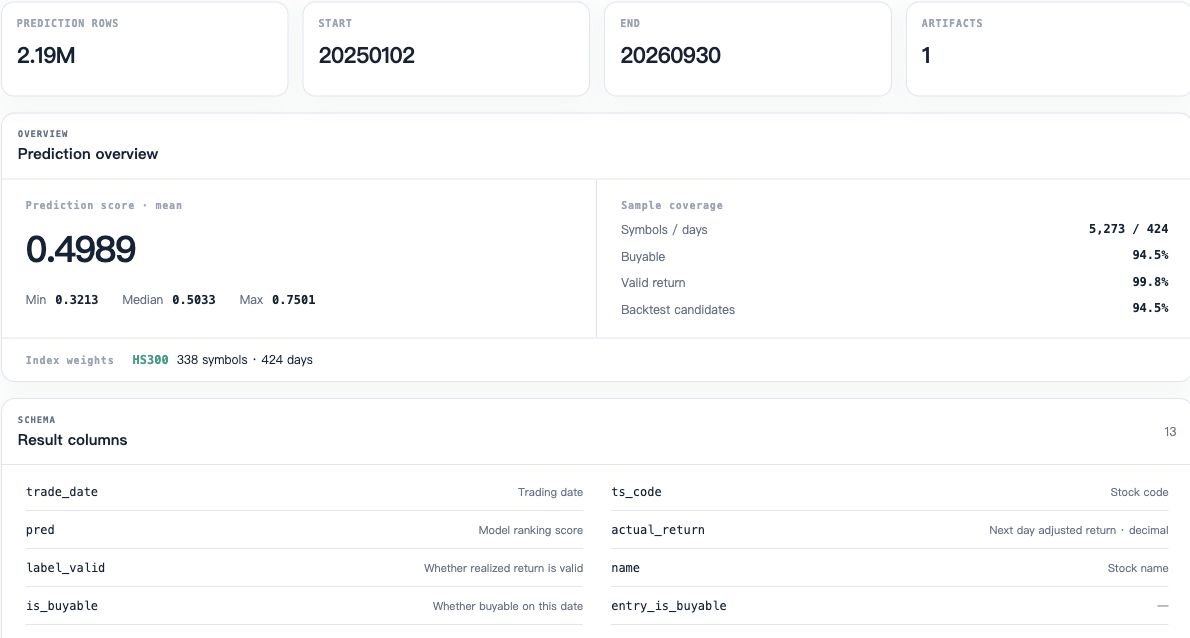

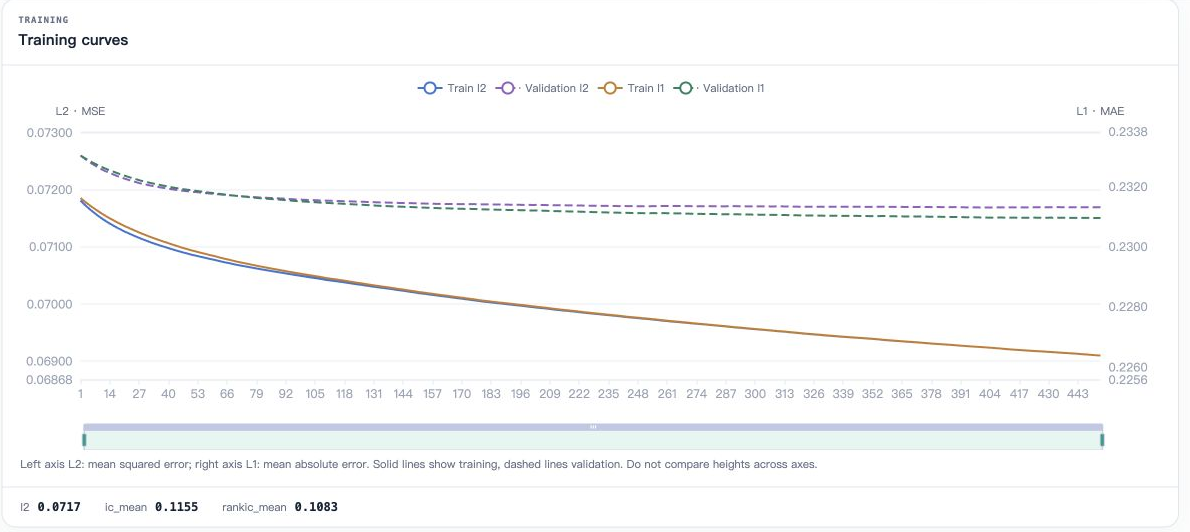

Inspect parameters, logs, metadata, and upstream relationships in Task details. Research result pages display ETL, factor, training, prediction, and backtest artifacts. The screenshots below illustrate existing experiments and do not represent every run of this plugin.

Troubleshooting and source

Problem	Check
Missing registered Task	Installation environment, entry point, service restart, and target machine
ETL missing data	Workspace Tushare partitions, three static files, and historical date coverage
Prediction date error	pred_start must not precede train_end; model and ETL metadata must be complete
Results differ from examples	Data snapshot, feature groups, dates, labels, parameters, and costs

Task registration · ETL · Factor analysis · Training · Prediction · Backtesting

Research workflow · Research results · Task management

The repository’s run_pipeline.sh demonstrates handle extraction, stage-by-stage waits, and failure exits. It refreshes only the last seven days of market data; prepare full historical data before using it.

Local validation

From the repository root, after installing development dependencies:

.venv/bin/python -m pytest \
  tests/unit/test_alpha158_labels.py tests/unit/test_alpha158_backtest.py -q

These checks cover label timing, delayed exits, costs, and position accounting.
